Unlock, Read, and Write-Protected Automotive Microcontrollers

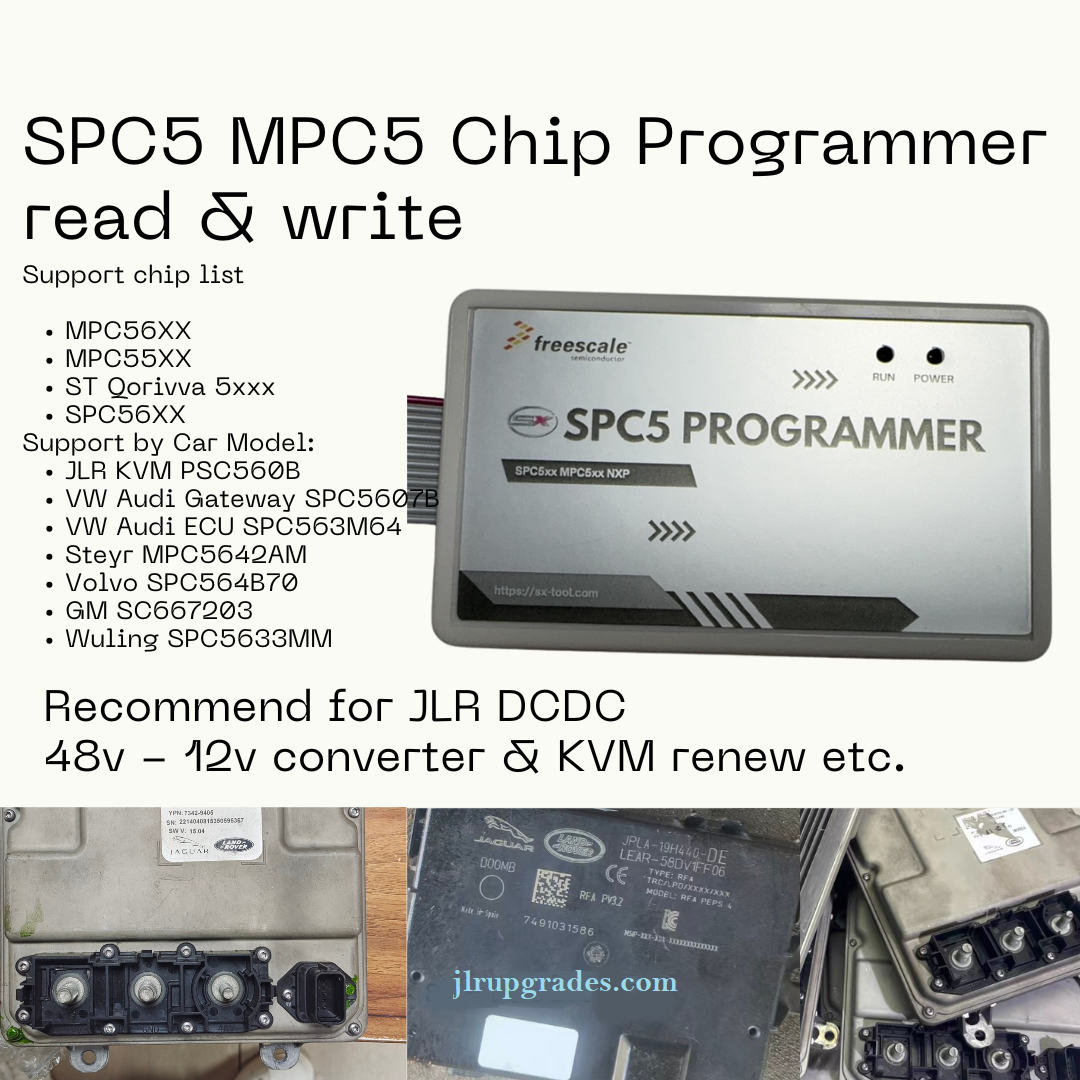

A universal JTAG programmer for reading and writing locked automotive MCUs. Essential for ECU repair, TCU cloning, and key programming on MPC5xxx and SPC56xx chipsets.

Package Included

• SX SPC5 Main Programmer Unit
• SPC5 MPC5 Chip Adapter
• USB Connection Cable
• 14-pin JTAG/Nexus Ribbon Cable

Key Features

• Professional JTAG/Nexus Interface
  Stable and high-speed communication for direct access to locked-down Power Architecture® microcontrollers.
• Read/Write/Erase Operations
  Full control over the internal flash and EEPROM memory of the MPC5xxx and SPC5xxx series chips.
• USB Powered
  No external power supply needed – compact and durable design for workshop use.
• Wide Compatibility
  Supports a broad range of automotive-grade MCUs from NXP and STMicroelectronics.

Real-World Applications for Workshops

• Land Rover / Jaguar
  Read the D-Flash from the SPC560B60L3 chip on keyless entry (KVM/RFA) boards to prepare dealer keys or perform module renewal.
• Volkswagen / Audi
  Access the MCU in Gateway modules (SPC5607B / SPC5644B) and ECUs (SPC563M64) for repairs and data recovery.
• General Motors / Buick
  Read and write the flash on transmission boards (SC667203) or SPC5633MMLQ60 chips found in GM Wuling modules.
• Volvo & Other Manufacturers
  Directly interface with the SPC564B70 MCU on gateway boards, support for Steyr (MPC5642AMZV2), and more.

Full Chipset Support Details

Supported NXP MPC55xx / MPC56xx Series

• MPC5514E/G, MPC5515S
• MPC5516E/G/S, MPC5517E/G/S
• MPC5533, MPC5534
• MPC5553, MPC5554
• MPC5565, MPC5566, MPC5567
• MPC5601D/P, MPC5602B/C/P
• MPC5603B/C/P, MPC5604B/C
• MPC5605B, MPC5606B/S, MPC5607B
• MPC5632M, MPC5633M, MPC5634M
• MPC5643L, MPC5645S, MPC5646C
• MPC5644A/B/C, MPC5645B/C/S
• MPC5646B/C, MPC5668E/G
• MPC5674F, MPC5675K

Supported STMicroelectronics SPC56xx Series

• SPC560Bxx (e.g., SPC560B60L3)
• SPC560Pxx (e.g., SPC560P50L3)
• SPC563M64xx
• SPC564A80xx
• SPC564Bxx (e.g., SPC564B70)
• …and other equivalent SPC5 series models

Note for Professionals: This is an advanced tool that requires knowledge of automotive electronics, soldering (to attach to connection points on a PCB), and MCU architecture. It is designed for professional use in a workshop environment. Software and connection diagrams are provided.

Stop Turning Away Jobs Because of Protected Processors

This programmer is your key to performing advanced repairs, cloning modules, and programming keys on a component level.
