Utility Side Rail Black Anodised Left Kit for Land Rover Defender L663 110

Utility Side Rail Black Anodised Left Kit for Land Rover Defender L663 110

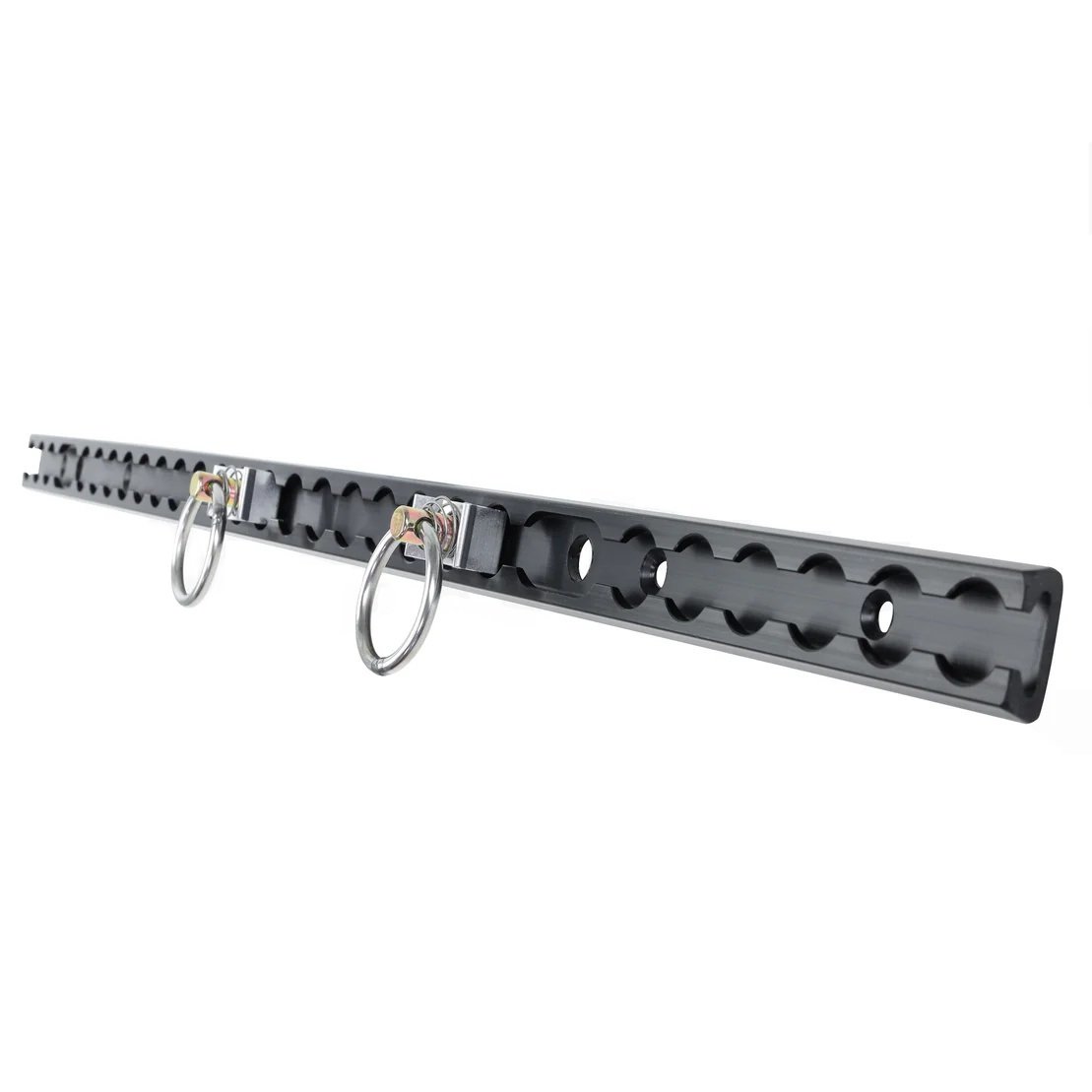

This is a useful utility rail for the side of the Land Rover Defender L663 110.

This rail is made from aluminum and has been black anodized.

Note: The black anodized finish will show wear marks with use (especially when using metal fixings). If this is a consideration, you may purchase the silver version (bare aluminum).

This is for the Left-hand side (UK passenger side/nearside) – the rail can be fitted on the left or right but the fitting kit is slightly different.

Note this rail has 3 large holes and leaves the 3 M10 fixing holes exposed so these are available to fit accessories to – like ladder/side gear carrier etc. But on the LHS of the Defender, there are only 2 fitting holes – we have left 3 holes in our rail as we use this to fit our molle plates.

This aluminum rail replaces the trim strip beneath the rear window – you can keep your original trim strip safe and simple, and clip it back later if needed.

Once installed, the rail offers endless possibilities for installing your fixings/accessories, etc.

We will include 2x tie-down loops that are spring-loaded slid to your preferred location and then locked into place (Do not leave the fixing loops installed while driving – they may
rattle and rub on your paintwork).

An added advantage of installing this rail is that it exposes the fixing holes that you need to install the side accessories of Defender (ladder/gearbox etc).

Note: This rail is compatible with our Molle plates (LRDP660) but you need to drill an access hole in the rail.

You would normally have to cut access holes in your trim strip to expose these holes – but with this rail installed, you can leave your original trim untouched and safely stored away.

This kit comes with:

• Black anodized aluminum utility rail – specially shaped for the Defender 110
• 2x Locking tie-down loops
• 6x Fitting inserts (custom-designed)
• 6x Stainless Steel Torx Head screws for attaching the rail to a vehicle (these screw into the above inserts)
• 2x Stainless Steel Cap head bolts – these are used to blank the holes for the side accessories if not installed

This is not a genuine Land Rover item.

Fitting Details

• Please note that the new rails are a slightly different design to shown as they are universal
  L/R).

Which Vehicles will this fit?

• This item WILL fit the Land Rover Defender L663 – 110 models only.
• This item WILL NOT fit the Land Rover Defender L663 90 or 130 models.
