JLR KVM RFA Module JPLA-19H440-DE – Passive Entry LR099141/T4K6115
HPLA-19H440-AD JLR KVM unit is essential for key replacement in vehicles subjected to the latest JLR security update, preventing further key programming by locking the KVM. Programming for this unit necessitates the use of appropriate diagnostic equipment (JLR Pathfinder or Jet Master Software is recommended). Ensure that two keys are accessible when programming a new KVM module (refer to our ‘Remote Keys’ section for the appropriate keys).

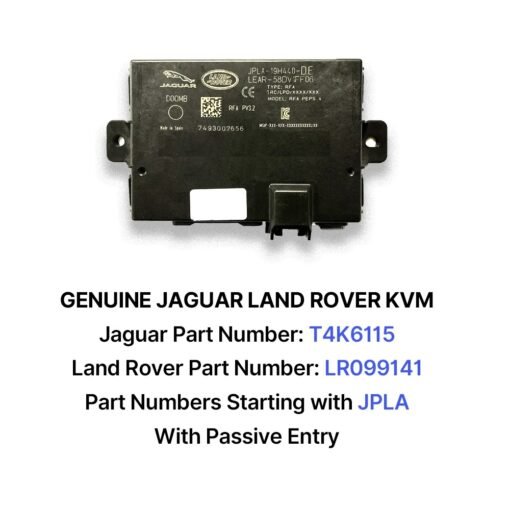

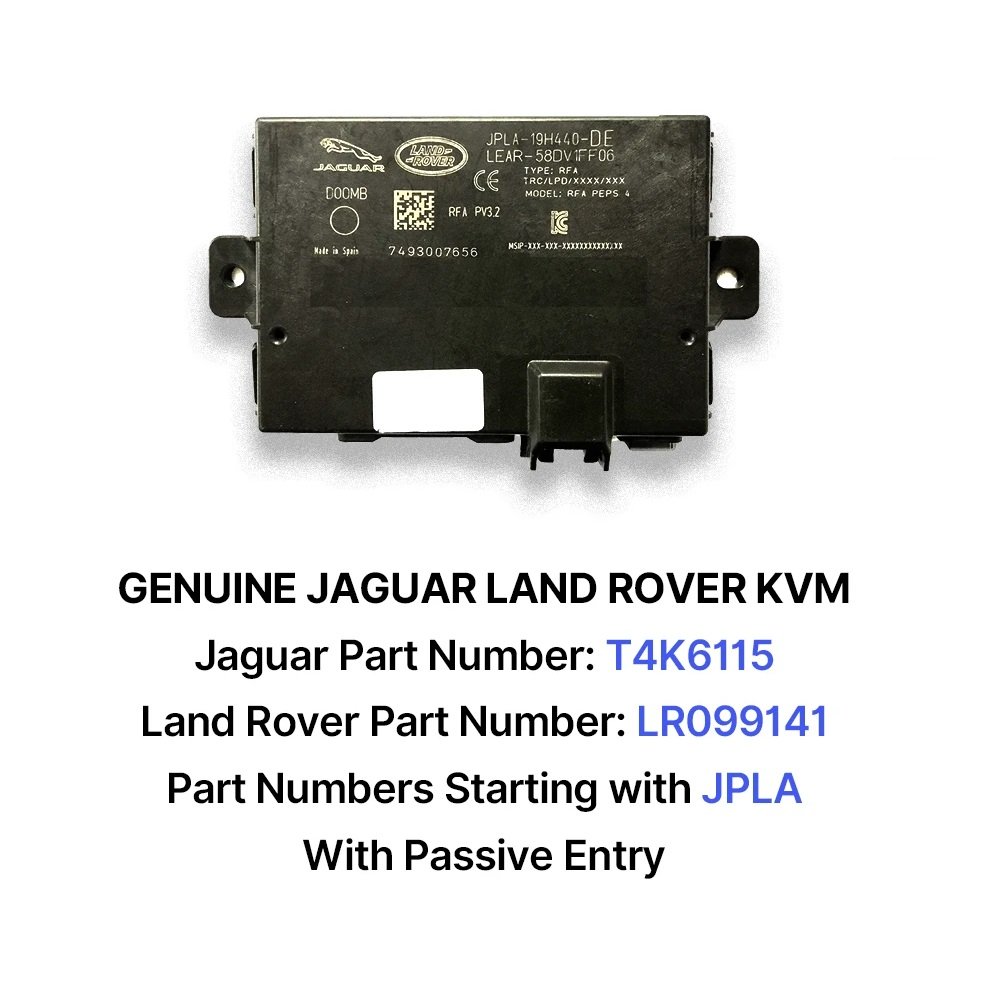

Jaguar Land Rover KVM Unit
- Land Rover Part Numbers: LR099141
- Jaguar Part Numbers: T4K6115
- Printed Part Numbers: JPLA-19H440-DE
JPLA-19H440-DE KVM comes in its original manufacturer packaging. This variant features three plugs for passive entry and is designed to be compatible with engineer Part Numbers Starting with JPLA.
Suitable for the following models (with passive entry):
- Range Rover Sport – L494 (VIN: JA00001 – KA999999)
- Land Rover Discovery 5 – L462 (VIN: JA00001 + )
- Range Rover – L405 (VIN: JA00001 – KA999999)
- Jaguar I-Pace – X590 (VIN until L1F999999)
This unit can be programmed only once, providing a single opportunity to code both the unit and any available keys. Once programmed, the unit will lock, preventing any reconfiguration. It is essential to program all keys simultaneously during the initial session; failure to do so will result in the deletion of unprogrammed keys, with no option to add them later. If additional keys are needed in the future, replacing the KVM unit will be necessary once again.
And just so you know, this item can’t be returned. It falls under the category of products that we don’t give refunds for.
