Genuine JLR KVM RFA Module FK72 – Passive Entry Before DOIP LR080744/J9C16073

Genuine JLR KVM RFA Module FK72 – Passive Entry Before DOIP LR080744/J9C16073

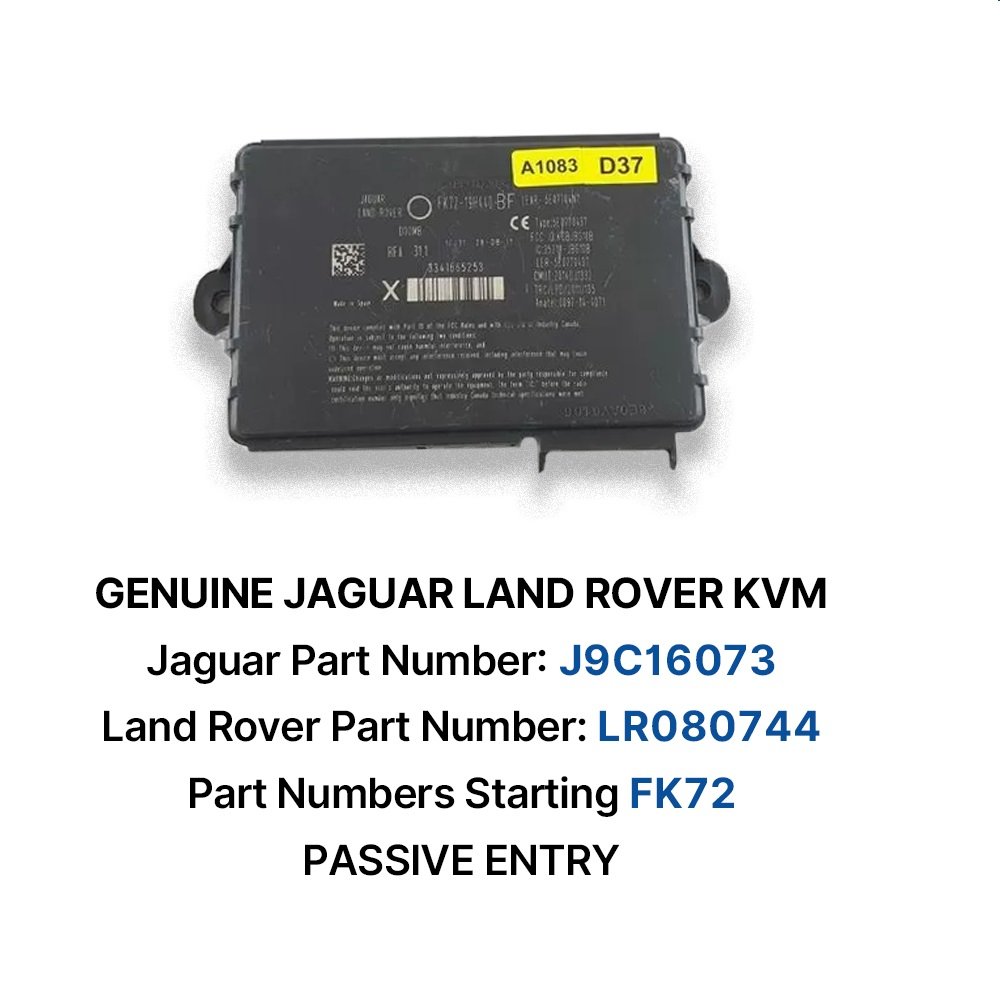

Jaguar Land Rover KVM Unit

• Land Rover Part Numbers: LR080744
• Jaguar Part Numbers: J9C16073
• Printed Part Numbers: FK72-19H440-CA

This Genuine Jaguar Land Rover KVM (RFA Module) comes in its original manufacturer packaging. This variant features three plugs for passive entry and is designed to be compatible with engineer Part Numbers Starting with FK72.

Please contact us if you have any uncertainty regarding whether this is the appropriate part for your vehicle. This includes all JLR models with an engineer part number that starts with FK72, such as FK72-19H440-BH.

Important:

• To get this thing working, you need to do some programming. Use the JLR SDD Pathfinder software or SX-CAN Master Engineering software and go to the ‘Configure new KVM module’ option. To set it up, you’ll need at least two keys.
• You can only program this unit once. There’s no going back. Once it’s programmed, it’s locked, and you can’t change it. Make sure all keys are programmed together during the initial setup because any missed keys won’t work and can’t be added later. If you need more keys down the line, you’ll have to replace the whole KVM unit.

And just so you know, this item can’t be returned. It falls under the category of products that we don’t give refunds for.
