CarPlay Android Auto Upgrade USB Module for Land Rover Jaguar MY 2017–2019

CarPlay Android Auto Upgrade USB Module for Land Rover Jaguar MY 2017–2019

The activation requires an OEM JLR VCI kit like JLR DOIP to work with Pathfinder software. for the newer models, MY2019-2022, you could activate the CarPlay Android auto without upgrading the IMC module firmware.

Package Include

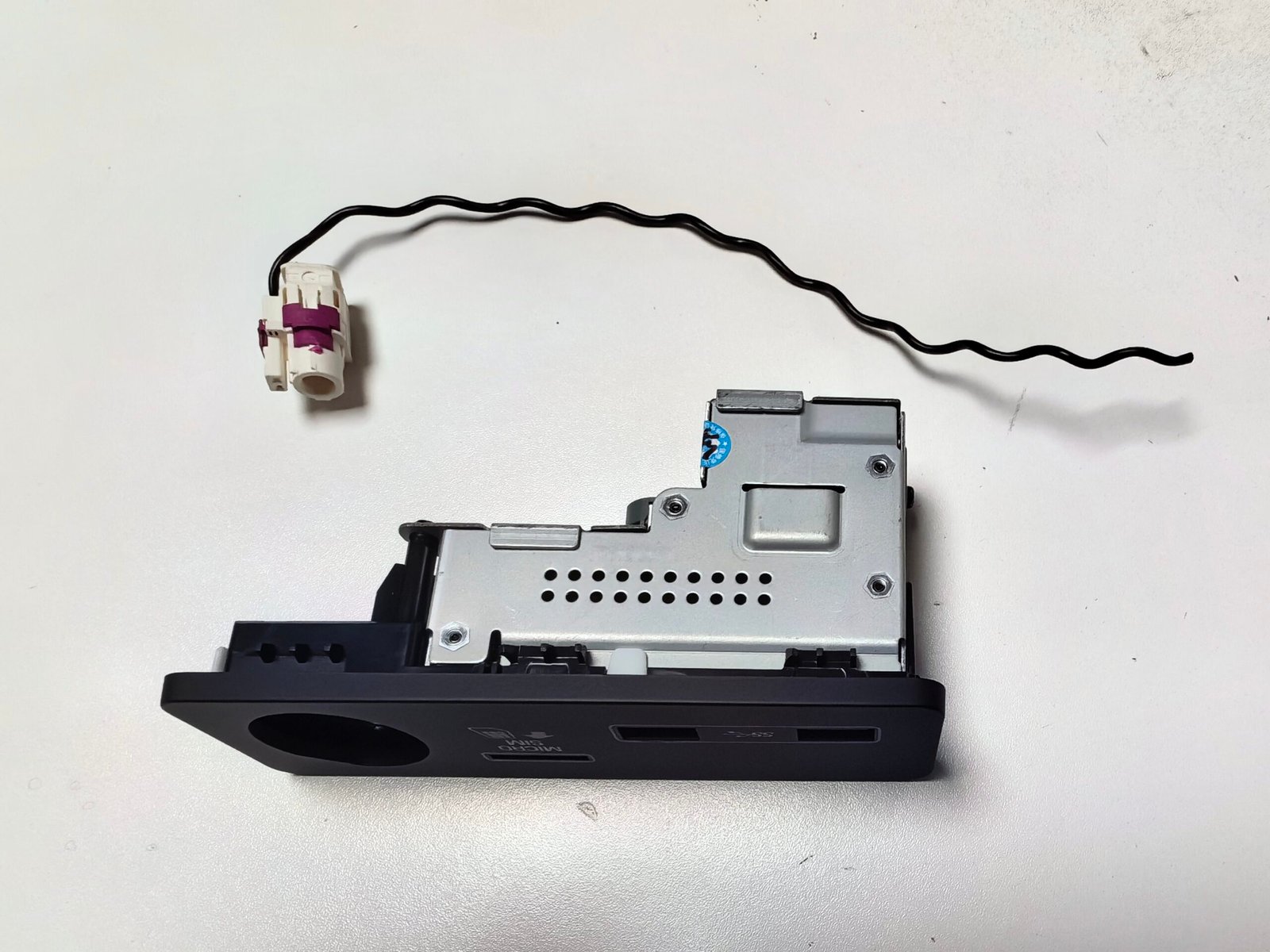

• JLR USB Media Advanced Module x 1
• Connector wiring x 1

Tools required for Jaguar Land Rover Apple CarPlay and Android Auto

• Hardware VCI JLR DOIP VCI WF
• Software Pathfinder V374
• Software tool CCF Tools 4.9 or CCF-PRO 2006-2024 VBF editor
• MY 2018 0 2019 models, will require an ICM firmware flash upgrade and an exchange of the armrest USB module.
• MY 2020 -2022 models can be activated directly by software.

Refer to more details on how to knowledge base:

• How to activate JLR CarPlay Android Auto
• How to use CCF Tools 4.9

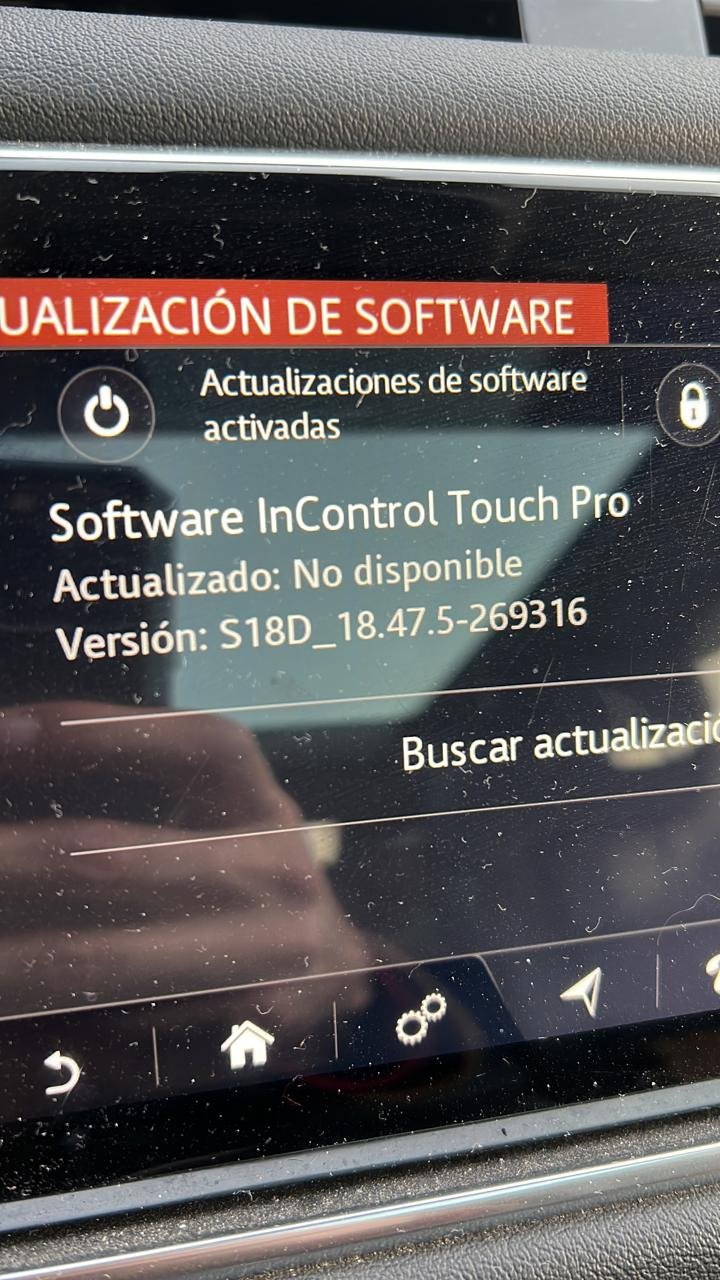

• IMC update to the newer version by JET Master

About Jaguar Land Rover Apple CarPlay and Android Auto

Jaguar Land Rover today announced both Apple CarPlay® and Android Auto™ functionality have been added as standard equipment on the 2019 Jaguar I-PACE, as well as an option on select 2019 model year vehicles equipped with the InControl Touch Pro™ and Touch Pro Duo™ infotainment systems. Drivers can interact with key mobile apps, such as Spotify, and WhatsApp, with the release of iOS12, and Waze through the vehicle’s touchscreen, like a smartphone. Where equipped, certain functionality can even be controlled via the vehicle’s Voice Control, providing additional convenience. Owners will connect simply their smartphone to the vehicles via a compatible USB cable and select Apple CarPlay® or Android Auto™ on the vehicle’s touchscreen2,5.

Visit Apple.com and Android.com for the current list of devices and apps which share system compatibility. The smartphone pack, which includes Apple CarPlay® and Android Auto™ is standard on all Jaguar I-PACE models from launch. Additionally, from the 2019 model year forward, all vehicles equipped with the Jaguar and Land Rover InControl Touch Pro™ or Touch Pro Duo™ infotainment systems with navigation, InControl® Apps™, and Wi-Fi connectivity will be available with the optional Smartphone Pack4.

Depending on the model, the Smartphone Pack will be either a port- or factory-installed option for around $300, depending on model trim level 1. In addition to the new Smartphone Pack, Jaguar and Land Rover have made many other key enhancements to the InControl Touch Pro™ infotainment system for the 2019 model year, including:

Voice command for Navigation functionality introduced for select models;

Major graphical refresh on the “Home,” “Extra Features” and “Customizable Homepage” screens; Minor user experience changes to the button and icon placement on “Media Screen”; and Additional shortcut buttons on the home screen for key functions within Navigation, Media, and Phone.

InControl Touch Pro™

Designed and developed in-house around a quad-core processor, a high-speed 60GB solid-state drive (SSD), and an ultra-fast Ethernet network, InControl Touch Pro™ represented a step change for Jaguar Land Rover infotainment technology when it was first introduced with the 2016 model year. The Jaguar InControl® Touch Pro™ infotainment system features a 10-inch touchscreen. As a tablet, there are no buttons; all controls are integrated into the bottom section of the touchscreen, making interaction smooth and seamless.

The home screen can be customized and widgets can be added – users can even add additional home screens if they wish. InControl Touch Pro™ has been designed to make every journey easier and more enjoyable. Navigation data stored on the high-speed SSD can be accessed in a fraction of the time required with conventional hard drive technology. Users can zoom in and out of maps using ‘pinch’ and ‘pan’ gestures. Even when there’s no GPS signal the system can still help drivers to stay on track with dead-reckoning functionality which analyzes data from the vehicle’s sensors to accurately predict the vehicle’s location. The use of a data connection to access location-based features adds another dimension to the system’s capability3.

Search for a destination and the system will check if there’s sufficient fuel or battery range to complete the journey. If not, this will be flagged and available filling/charging stations on the route that are within range are shown on the map; tapping on one of them is all it takes to add it as a waypoint. When active, the data connection also allows for many other features to be activated. With InControl Touch Pro™ it’s possible to share destination, current location, and estimated time of arrival (ETA) with others via email or text message when using the vehicle’s onboard navigation system2.

When caught in traffic the system can automatically follow up with an ETA update. Commute Mode learns an owner’s daily drive so that it can offer alternative routes to avoid congestion using historical and real-time traffic information. Approach Mode adds a 360-degree interactive view of your destination alongside the map display when you’re approximately 656 feet (200m away) – it can even show you where the nearest available parking lots are and then direct you to them.

InControl Touch Pro Duo™

First debuting on the 2018 Land Rover Range Rover Velar, and now available as standard equipment on the 2019 Jaguar I-PACE, Land Rover Range Rover, and Range Rover Sport, Touch Pro Duo™ takes the best hardware and UX characteristics of InControl Touch Pro™ and builds on them to make interaction less distracting and even more user friendly. Dual upper and lower touchscreens form the centerpiece of the new minimalist HMI that controls the infotainment, HVAC, and many other system settings. Fast and intuitive, Touch Pro Duo™ combines finely engineered physical controls and a beautiful digital interface to deliver a truly connected driving experience.

The system looks simultaneously futuristic and elegant thanks to the interlinked upper and lower touchscreens that provide clear graphics and ease of operation with familiar tap, swipe, and pinch-to-zoom control gestures on the upper screen. The customizable home screen also allows customers to create shortcuts to preferred features. The Touch Pro Duo™ system allows drivers to keep mapping information displayed on the upper touchscreen while providing easy access to further features such as HVAC control, seat settings, music information, and drive mode selection on the secondary lower display. By dividing information and controls logically between the two screens, Touch Pro Duo™ achieves an even more intuitive user experience.

Positioned on either side of the lower screen are two rotary dials, which can be used to control the cabin temperature, fan speed, seat climate, and massage functions. These can also be used to manage media and phone functionality via specialist widgets when the upper screen is in use. Behind the steering wheel, a high-resolution Interactive Driver Display includes customizable dual dial, single dial, and extended mode views. Other frequently used features – including phone, navigation, and media settings – can also be managed using this cluster.

For additional information regarding the InControl Touch Pro™ or Touch Pro™ Duo infotainment systems, Apple CarPlay®, or Android Auto™, please visit your local Jaguar or Land Rover retailer, JaguarUSA.com, LandRoverUSA.com, Apple.com or Android.com.
