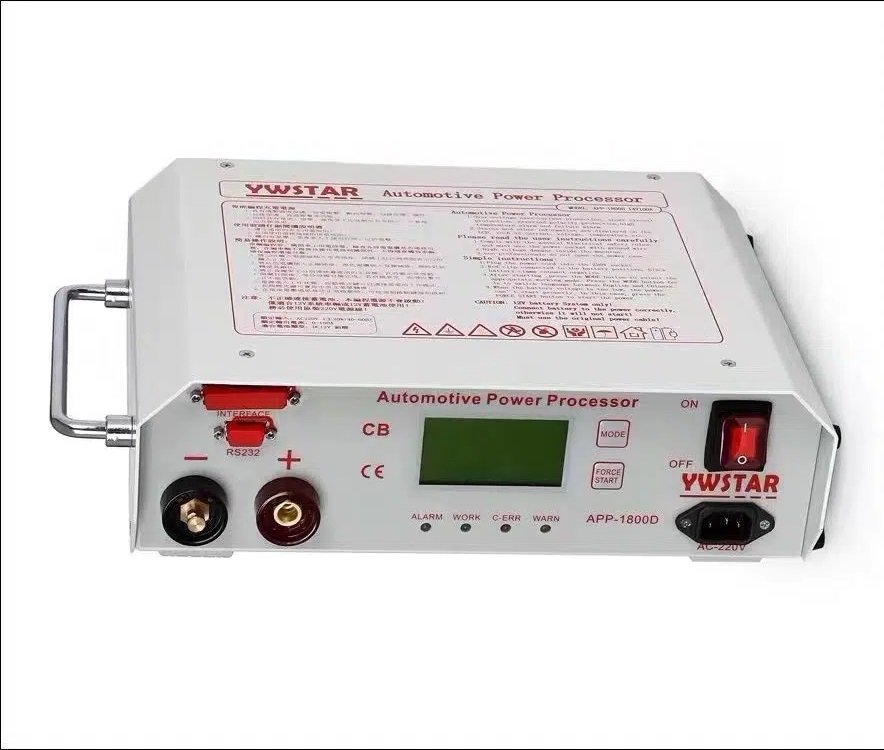

Power Supply for ECU Programming 14V 150A

Power Supply for ECU Programming 14V 150A

This Power Supply is specialized for Automotive ECU Programming Flashing for Volvo, Volkswagen, Audi, BMW, OEM-Benz, and Land Rover General Motors.

Note: please don’t start the engine during the process of power charging the vehicle to avoid damage to the device caused by adverse charging.

Highlights

• Smart stable power supply for vehicle programming / ECU flashing
• Charging dedicated power
• Adjustable output voltage 14V/120A, DC 110V – 220V
• High-temperature alarm.
• Intelligent charger for motor vehicle starter battery
• Extensive protection functions and self-protection functions
• Short circuit and reverse polarity protection
• Applications

Fit for Volvo, Volkswagen, Audi, BMW, OEM-Benz, Land Rover General Motors Etc. This power supply is compatiable work with Campaign recalls software updates, BMW Esys ECU flashing, OEM SCN online programming, Landrover JLR DOIP firmware upgrades, etc.

Specifications

• DC voltage: 14.5V
• Rated current: 0-100A
• Rated maximum power: 1500W
• Ripple and noise: 100mVp-p
• Automotive Programming Dedicated Power Input Characteristics input voltage: AC220V±15%, or AC110V±15%
• Frequency range: 40-60HZ
• Power Factor: 0.95
• Efficiency: 85%
• Overload: 90-110% of rated output power
• Output voltage/ A: 14V / 150A
• Working temperature: -40°C±85°C
• Safety: UL60950, TUV EN60950-1
• Withstand voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC
• Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70%
• RH EMC: Complies with EN55022, EN61000
• Dimensions: 25.5cm * 34cm * 11cm
• Weight: 8kgs Standard: EN55022, EN61000, UL60950, TUV EN60950-1

NOTE: the trolley in the pictures is not included and requires to be ordered as an option. The power supply ECU programming trolley
