Land Rover New Defender L663 Towing Mirror Clamp Kit

Land Rover New Defender L663 Towing Mirror Clamp Kit

This is a set of towing mirror clamps from our friends at Defender 3D.

These mounts provide a fully bespoke, secure, and solid mounting solution for any tow mirrors you may have, without the need for the often flimsy generic clamping systems available.

Made from extremely tough PA12 Nylon, design protected, and has a kit of 1 x Left and 1 x Right.

Note: you will need to use your donor mirrors for these clamps. Defender 3D has tested and recommends the Milenco Grand Aero 4 mirrors (these are the more rectangular ones,
unlike the ones demonstrated in the video), but any of their range will suit our clamps, as long as they have the 13mm or 16mm Steel Support bars.

There is an image uploaded showing the space you have to work with, should you wish to use any other 13mm or 16mm mirrors and bars, and also the recommended Milenco Mirrors, which are widely available worldwide.

As these work with both 16mm (+-0.5mm tolerance) AND 13mm (+- 0.25mm tolerance) mirror bars, they will work with the Milenco Platinum range too, which has a thicker more sturdy 16mm bar!

Just make sure you order the longer mirror bar sets, as Milenco also sells a shorter set which will not work for the huge Defender mirrors!

Defender 3D uses the ‘Aero’ trim lines of the stock mirror struts to stop the clamps from twisting or working loose, and we provide Neoprene material to the top and bottom pieces to protect your trim and avoid any rattling, which can be replaced as it becomes worn in later life NO drilling of the vehicle is required.

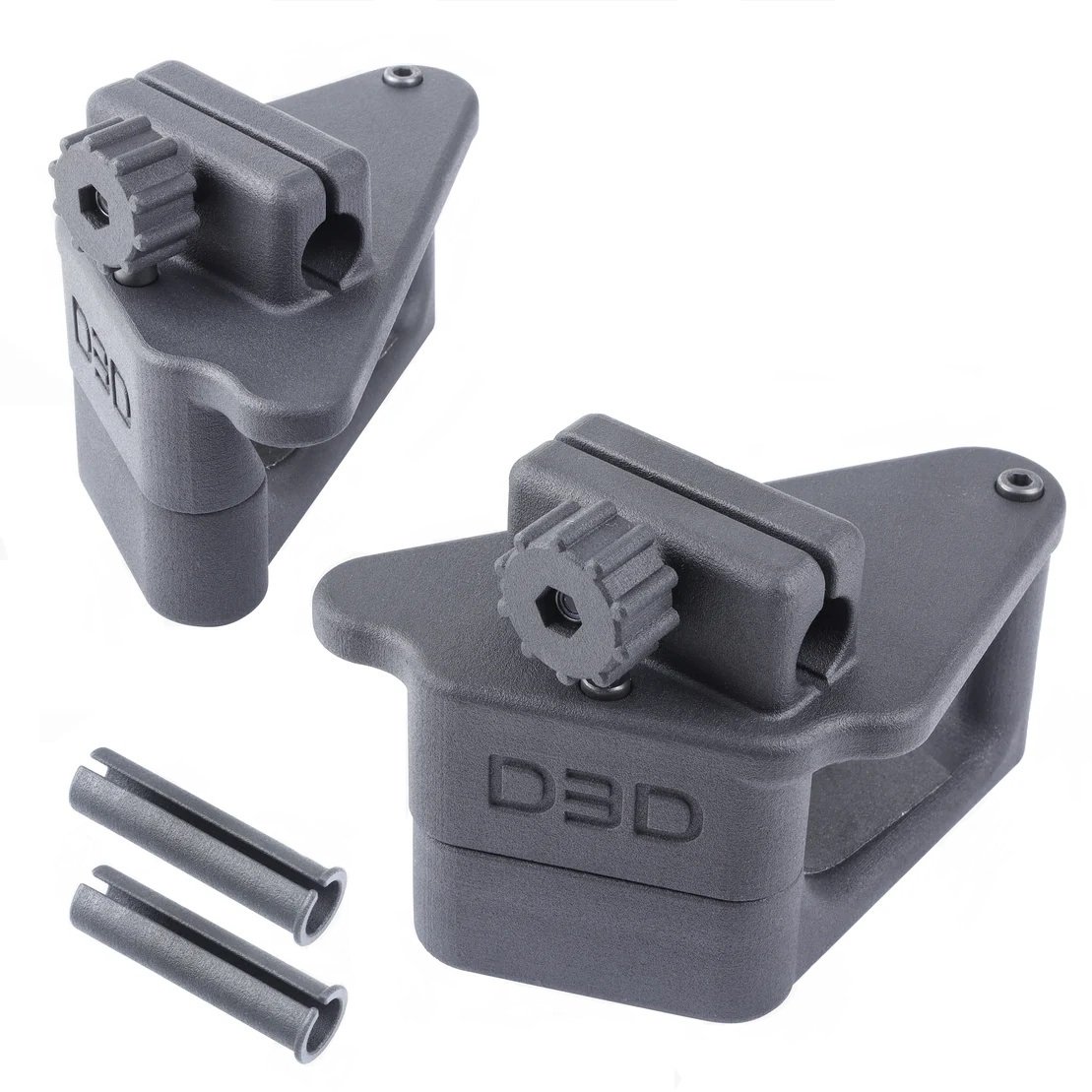

Included in the box:

• 1 x Left Clamp and thumb screw
• 1 x Right Clamp and thumb screw
• 2 x 16mm to 13mm Reducing sleeves

All Stainless Steel A2 hardware, in a Black finish.

Nylon captive lock nuts, so you don’t have to worry about dropping parts, or them working loose during use.

3D Printed in the UK to a high tolerance, shipped as a full kit, in a near Black/Graphite finish that is water and heat-tolerant.

Fits all current 90, 110 & 130 models, as shown in the video.

Please note that subtle design changes may have been implemented from those illustrated, as part of Defender 3D’s continual improvement.
